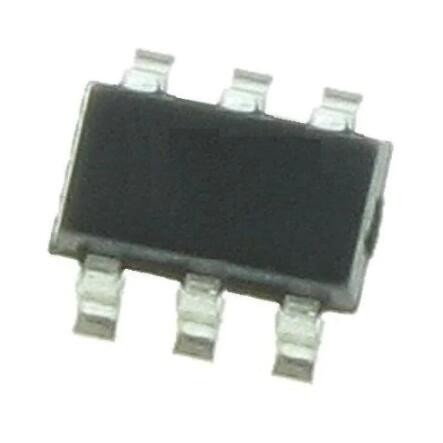

TSV630AILT

جزئیات محصول

شرایط پرداخت و حمل و نقل

Description: Operational Amplifiers - Op Amps 60UA 880 KHZ OP AMP RAIL/RAIL IN/OUT

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته کردن:

Operating Supply Current ::	60 uA	Ib - Input Bias Current ::	10 pA
Mounting Style ::	SMD/SMT	Minimum Operating Temperature ::	- 40 C
SR - Slew Rate ::	0.34 V/us	Supply Voltage - Max ::	5.5 V
Package / Case ::	SOT-23-6	Maximum Operating Temperature ::	+ 125 C
Supply Voltage - Min ::	1.5 V	Packaging ::	Reel
Output Current per Channel ::	63 mA	Product Category ::	Operational Amplifiers - Op Amps
Series ::	TSV630A	GBP - Gain Bandwidth Product ::	880 kHz
Number of Channels ::	1 Channel	Vos - Input Offset Voltage ::	500 uV
Manufacturer ::	STMicroelectronics	Shutdown ::	Shutdown
CMRR - Common Mode Rejection Ratio ::	60 dB

Operating Supply Current ::	60 uA
Ib - Input Bias Current ::	10 pA
Mounting Style ::	SMD/SMT
Minimum Operating Temperature ::	- 40 C
SR - Slew Rate ::	0.34 V/us
Supply Voltage - Max ::	5.5 V
Package / Case ::	SOT-23-6
Maximum Operating Temperature ::	+ 125 C
Supply Voltage - Min ::	1.5 V
Packaging ::	Reel
Output Current per Channel ::	63 mA
Product Category ::	Operational Amplifiers - Op Amps
Series ::	TSV630A
GBP - Gain Bandwidth Product ::	880 kHz
Number of Channels ::	1 Channel
Vos - Input Offset Voltage ::	500 uV
Manufacturer ::	STMicroelectronics
Shutdown ::	Shutdown
CMRR - Common Mode Rejection Ratio ::	60 dB

TSV630AILT

The TSV630AILT,from STMicroelectronics,is Operational Amplifiers - Op Amps.what we offer have competitive price in the global market,which are in original and new parts.If you would like to know more about the products or apply a lower price, please contact us through the “online chat” or send a quote to us!
